FAN COOLER

The Method Of Model Selection

Fan Cooler

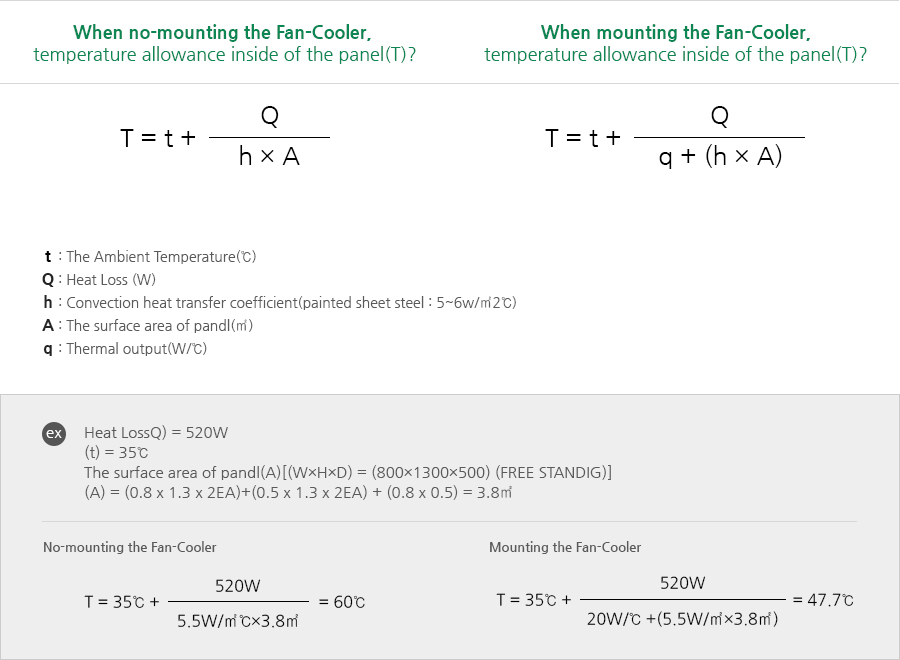

The Method of Cooling Capacity Calculation

The Method of Cooling Capacity Calculation

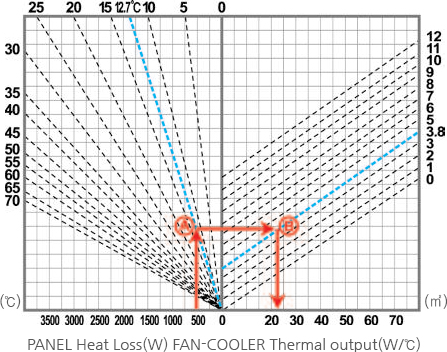

The Method of reading the graph

  1. 1. Heat loss in watts(W) : 520W
  2. 2. Required enclosure temperature : 47.7℃
  3. 3. Ambient temperatue(t) : 35℃
  4. 4. The temperature difference(℃) : 47.7-35=12.7℃
  5. 5. The effective surface area of the enclosure(㎡) : 3.8
  6. 6. This led us to select Hi-COOLER & FAN COOLER Model
        with a specific thermal output of 20W/℃
그래프 읽는 방법
